Test Extremities  -  to 1000 lb

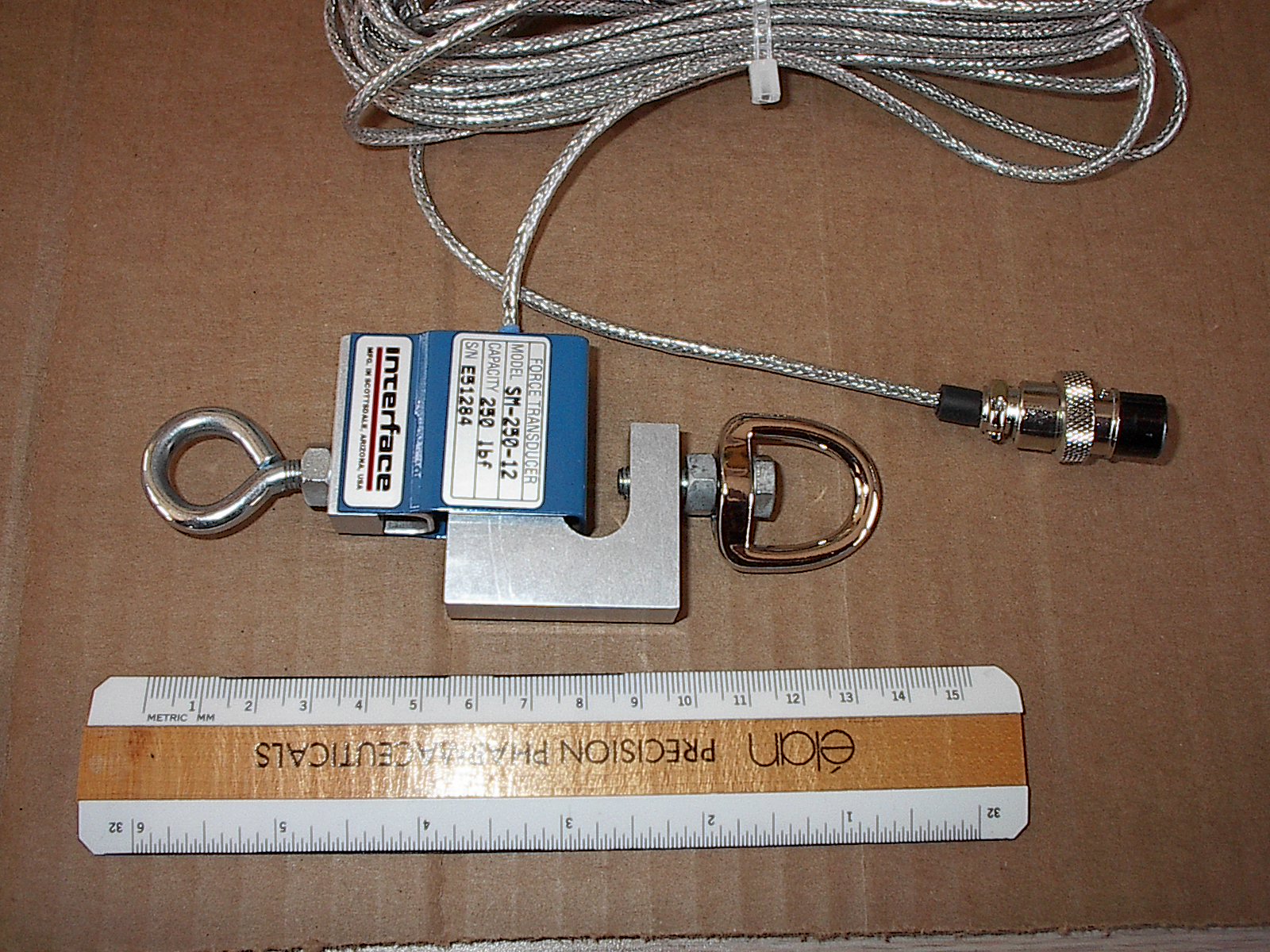

Interface SM250 - Force Transducer complete with cable and connectors.

   CAPACITY          250 lbf

   ACCURACY - (MAX ERROR)
   Nonlinearity -% FS                      + 0.03
   Hysteresis - % FS                       + 0.02
   Nonrepeatability - % RO              + 0.01
   Creep, in 20 min. - %                  + 0.025

TEMPERATURE
   Operating Range - F                   -65 to 200
   Operating Range - C                   -55 to 90

   ELECTRICAL
   Rated Output - mV/V (Nominal)    3.0
   Zero Balance - % RO                   +1.0
   Excitation Voltage - MAX              15 VDC

   MECHANICAL
   Safe Overload - % CAP        150
